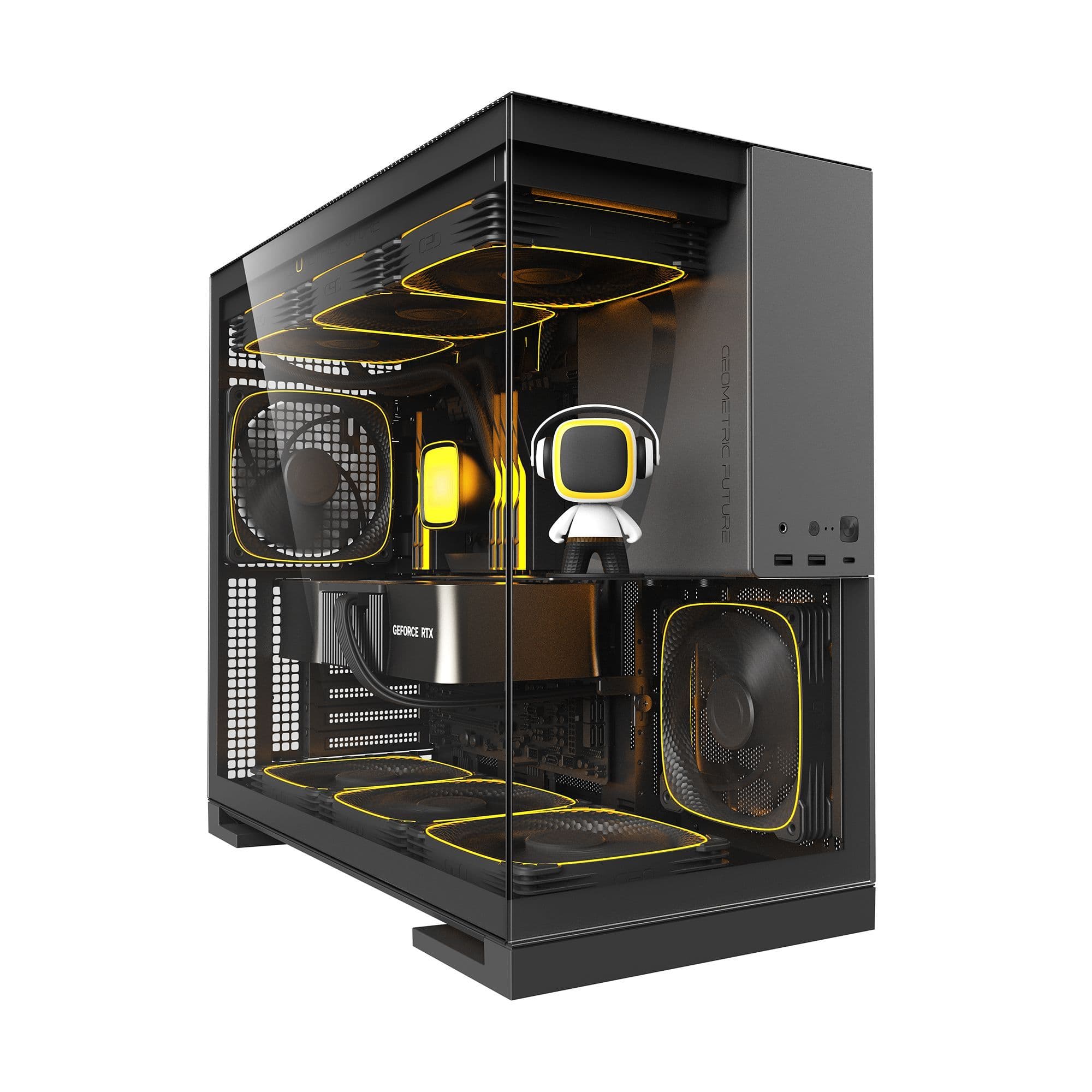

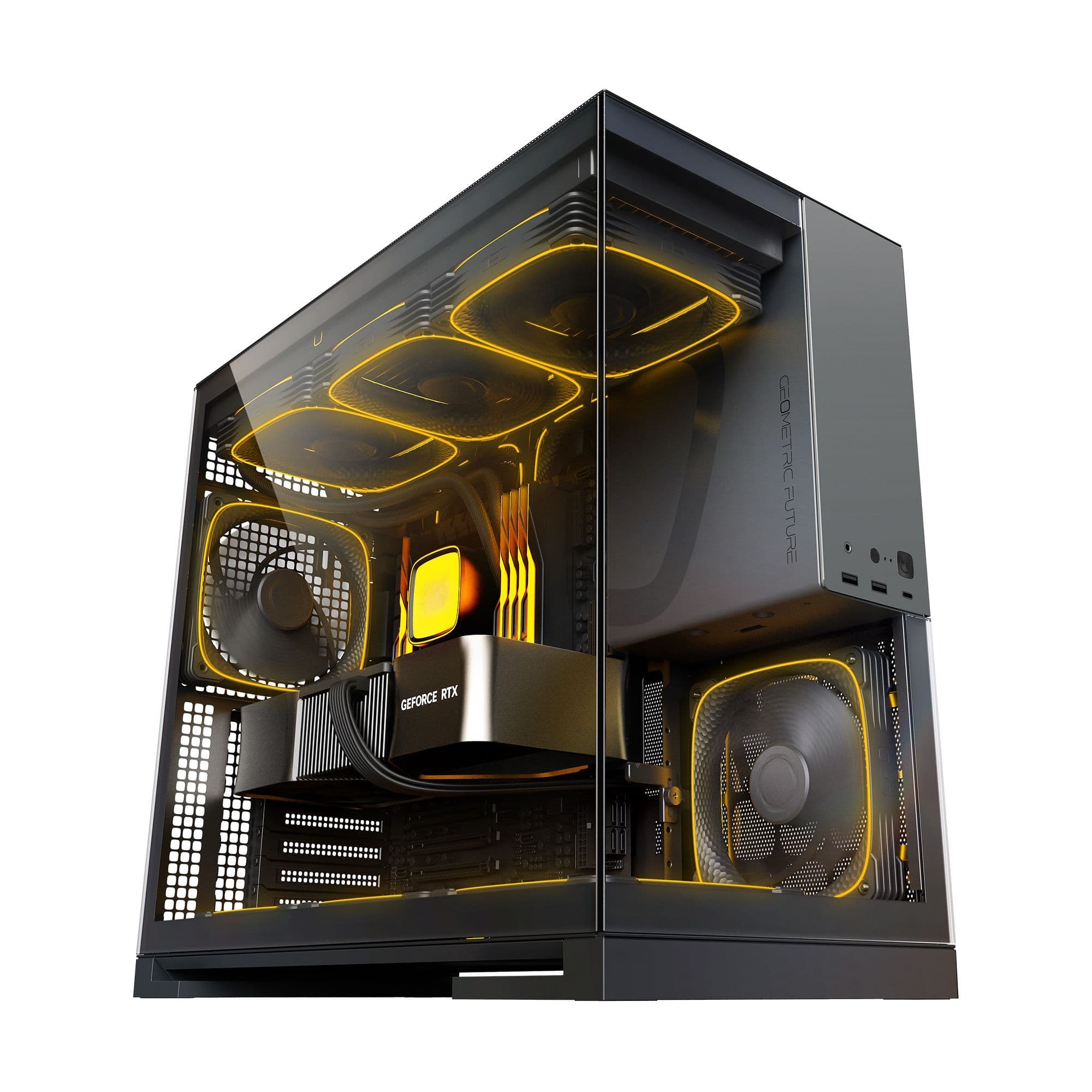

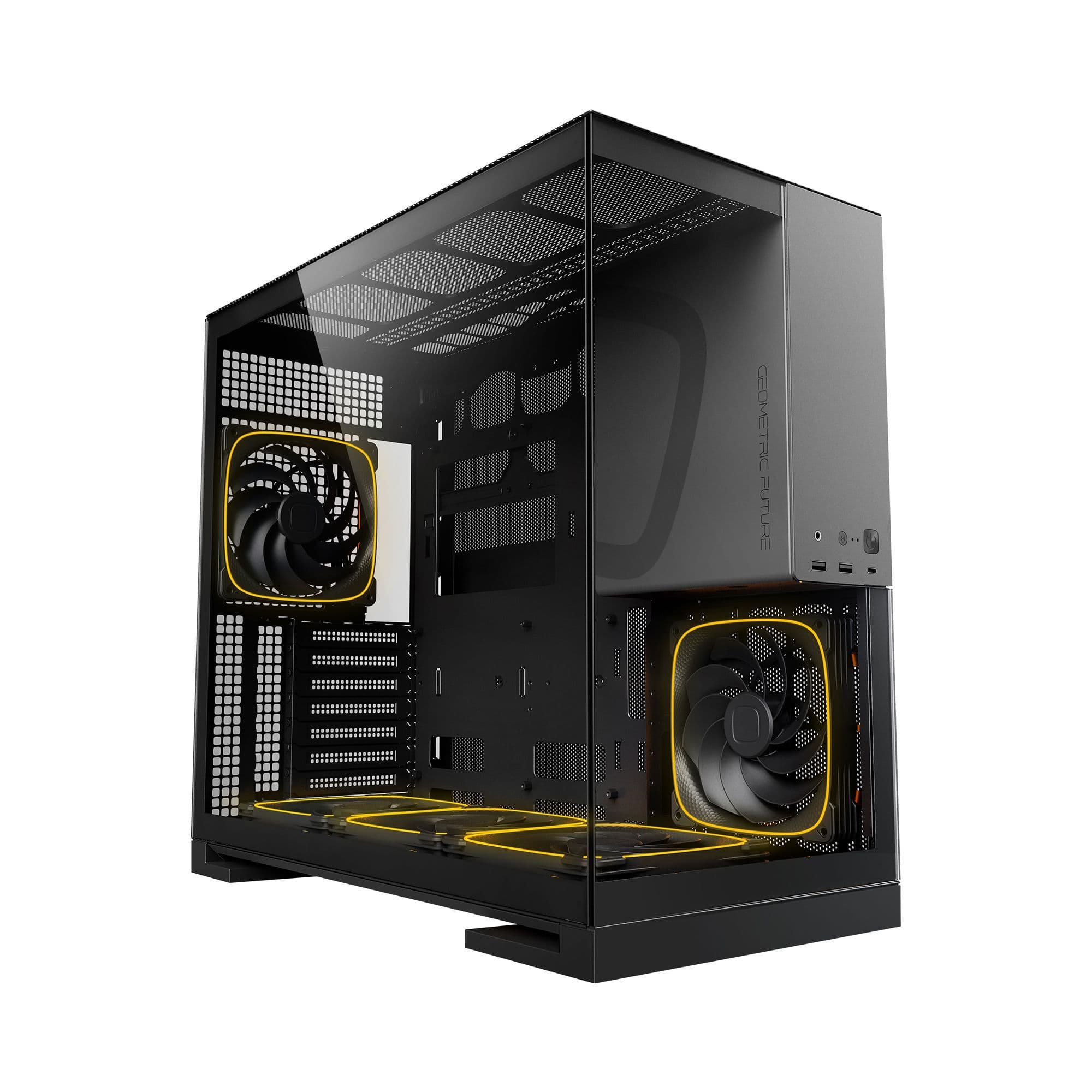

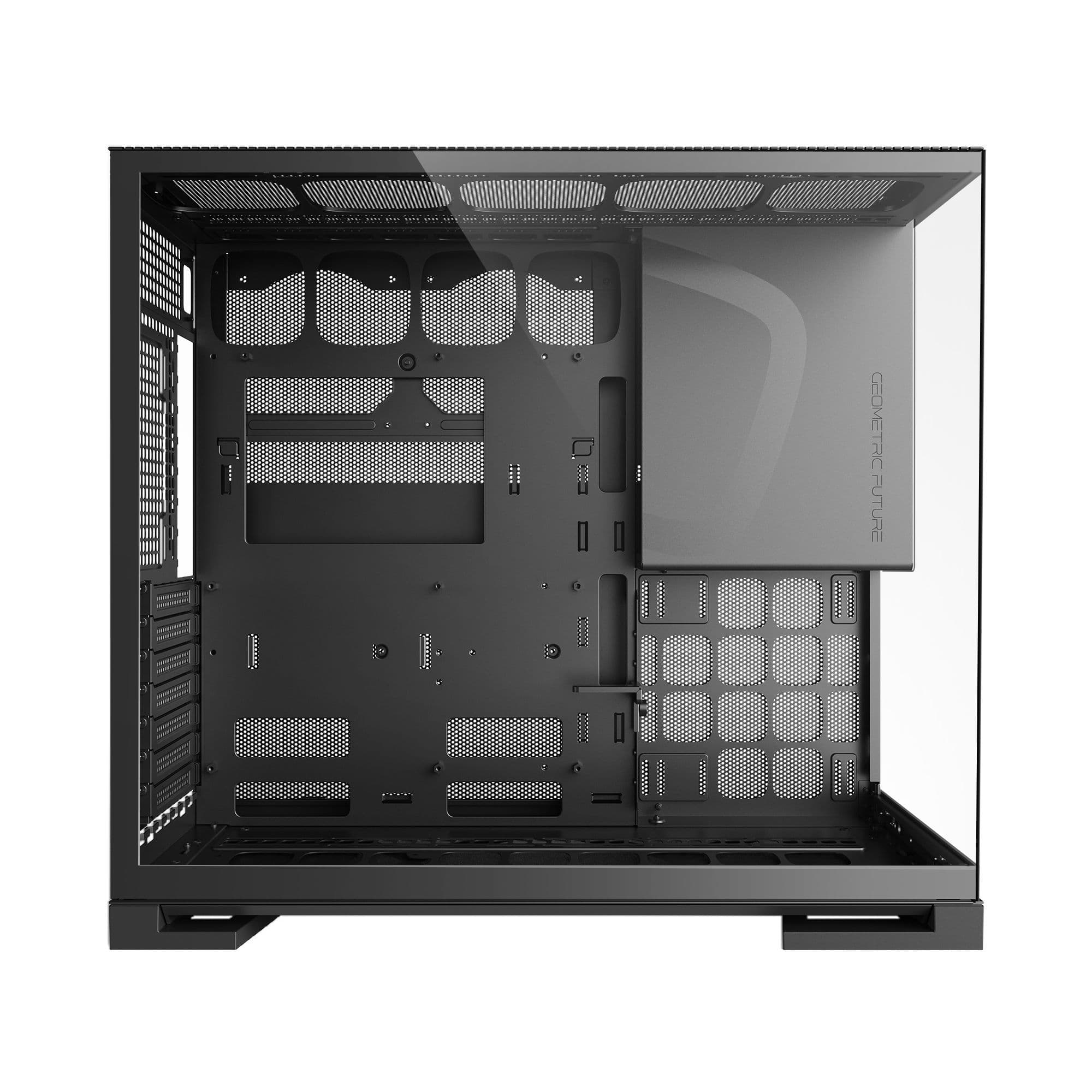

Geometric Future Model 5 Black/Grey + 5xARGB Fans Mid Tower Case

CAS-301

Description

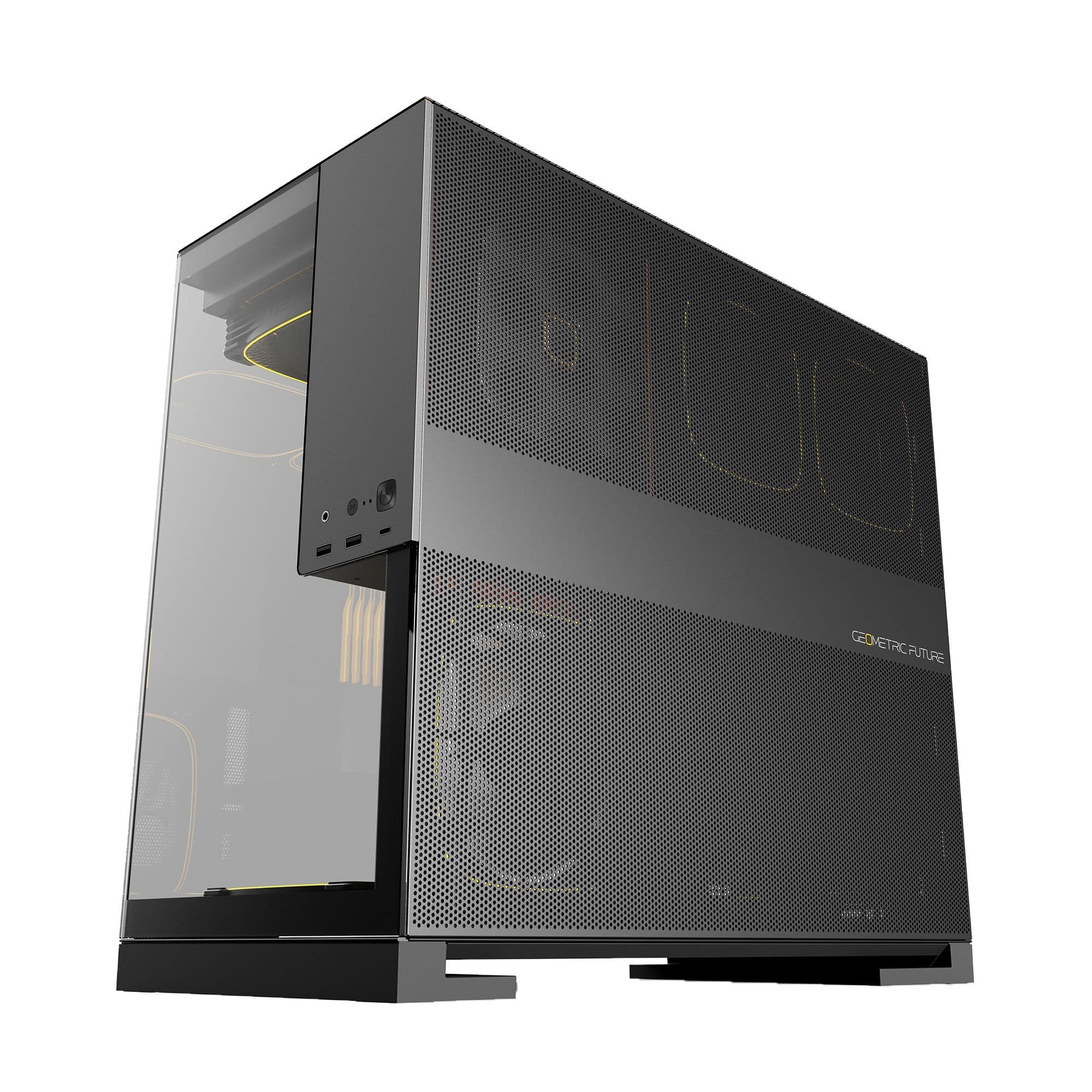

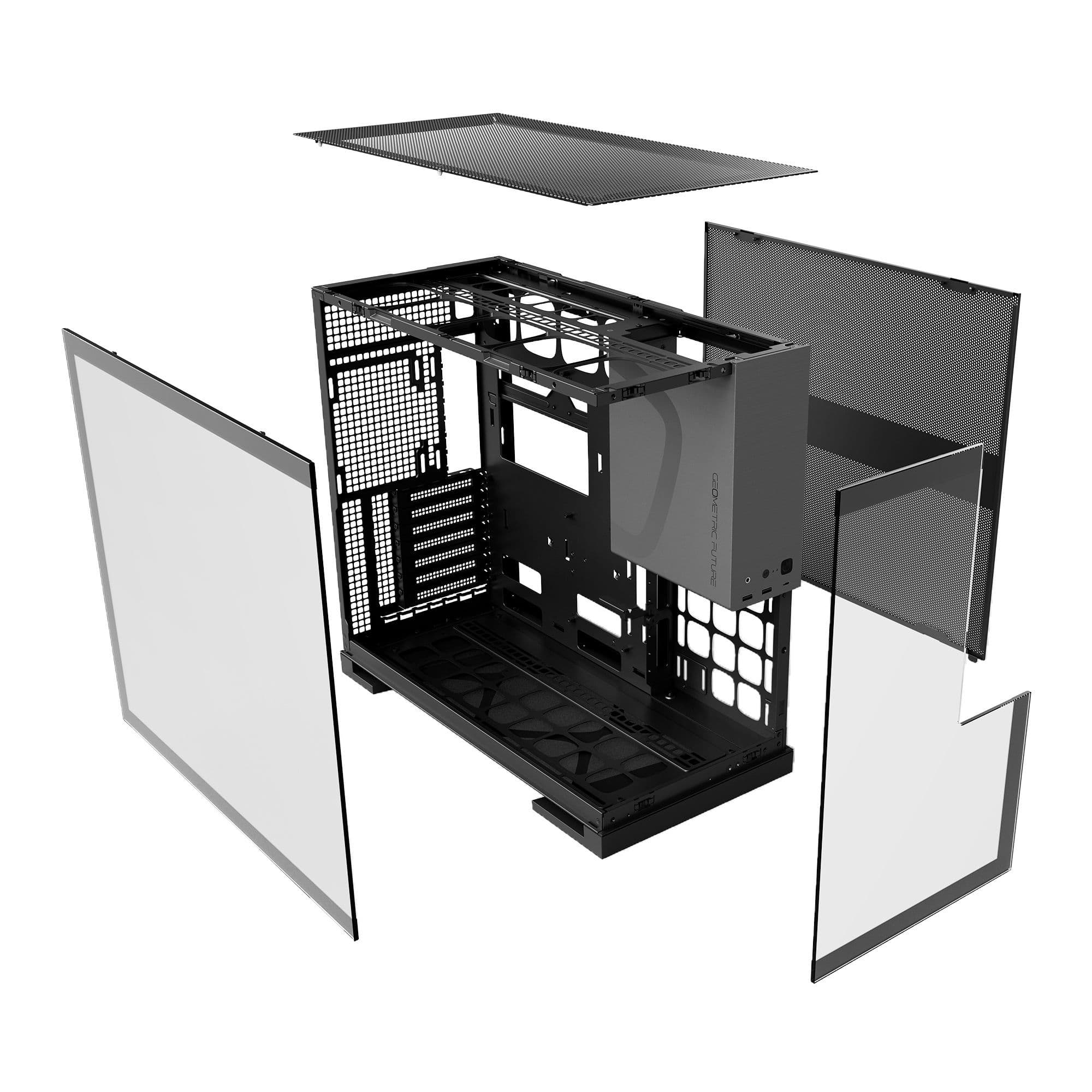

The Model 5 is an innovative PC case that offers enhanced functionality and capacity. Available in pillar less glass or mesh-front (Vent) versions, the Model 5 is designed to accommodate up to E-ATX motherboards, support a 420mm radiator at the top, and fit GPU's up to 460mm. It also features a unique PSU placement for optimised space. With refined mesh panels at the top and side, the Model 5 can house up to 10 x 120mm fans in its glass variant and 13 x 120mm fans in its mesh variant. Tool-free panels and dedicated decorative accessory zones provide enthusiasts with ease of access and personalisation.

  • Supports 420mm radiator , E-ATX and 460mm GPU's
  • Fun yet functional built-in display platform
  • Unique location for the PSU
  • Supports up to10 x 120mm fans
  • 0.8-1.2mm thick steel for entire chassis

Specifications

Brands Geometric Future
Model Number GEO-M5F-BG
Colour Black/Grey
Dimensions (LxWxH) 480 x 242 x 440mm
Motherboard Support ITX, M-ATX, ATX, E-ATX (12"x11")
Drive Bays 2.5" x 2 or 3.5" x 2
Expansion Slots 7
I/O Panel 3 x USB 3.0 / 1 x Type-C / 1 x HD Audio
Radiator Support Top - 360/420mm, Bottom - 360mm, Rear - 120/140mm
Front Fan Support 1 x 120/140/160mm (1x120mm ARGB Inc)
Rear Fan Support 1 x 120/140mm(1 x 120mm ARGB Inc)
Top Fan Support 3 x 120/140mm
Bottom Fan Support 3 x 120/140mm (3xARGB Inc)
Side Fan Support n/a
TYPE Mid Tower Desktop
Weight 10kg
