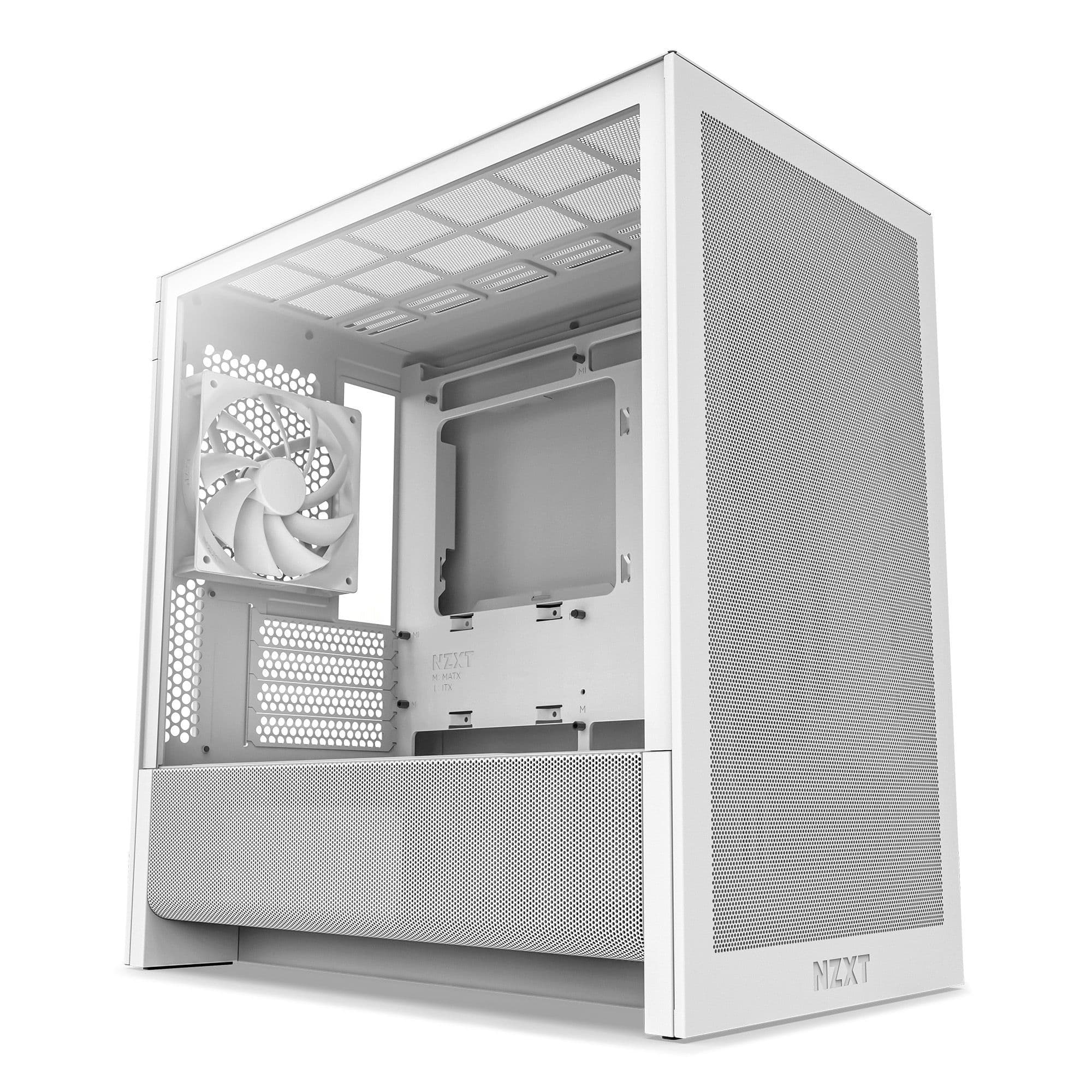

NZXT H3 Flow Micro ATX Airflow Case - All White

CAS-7011

Description

The H3 Flow micro-ATX case combines a space-efficient design with high-performance capability. Designed to support full-sized components, it features ultra-fine mesh panels and a ventilated PSU shroud to maintain consistent, optimized airflow throughout your build.

  • Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
  • High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.

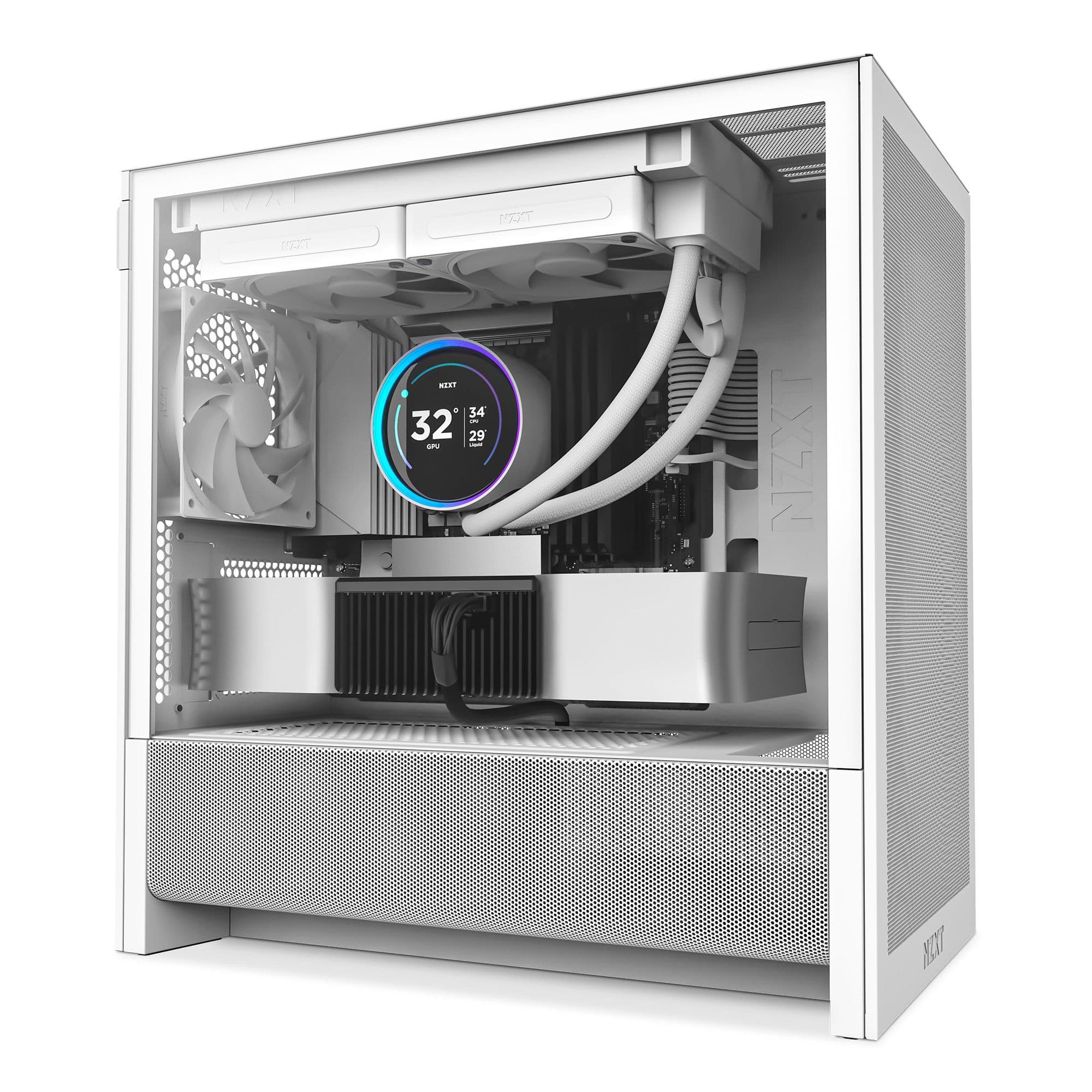

  • Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.
  • Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).
  • Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
  • Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
  • Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.

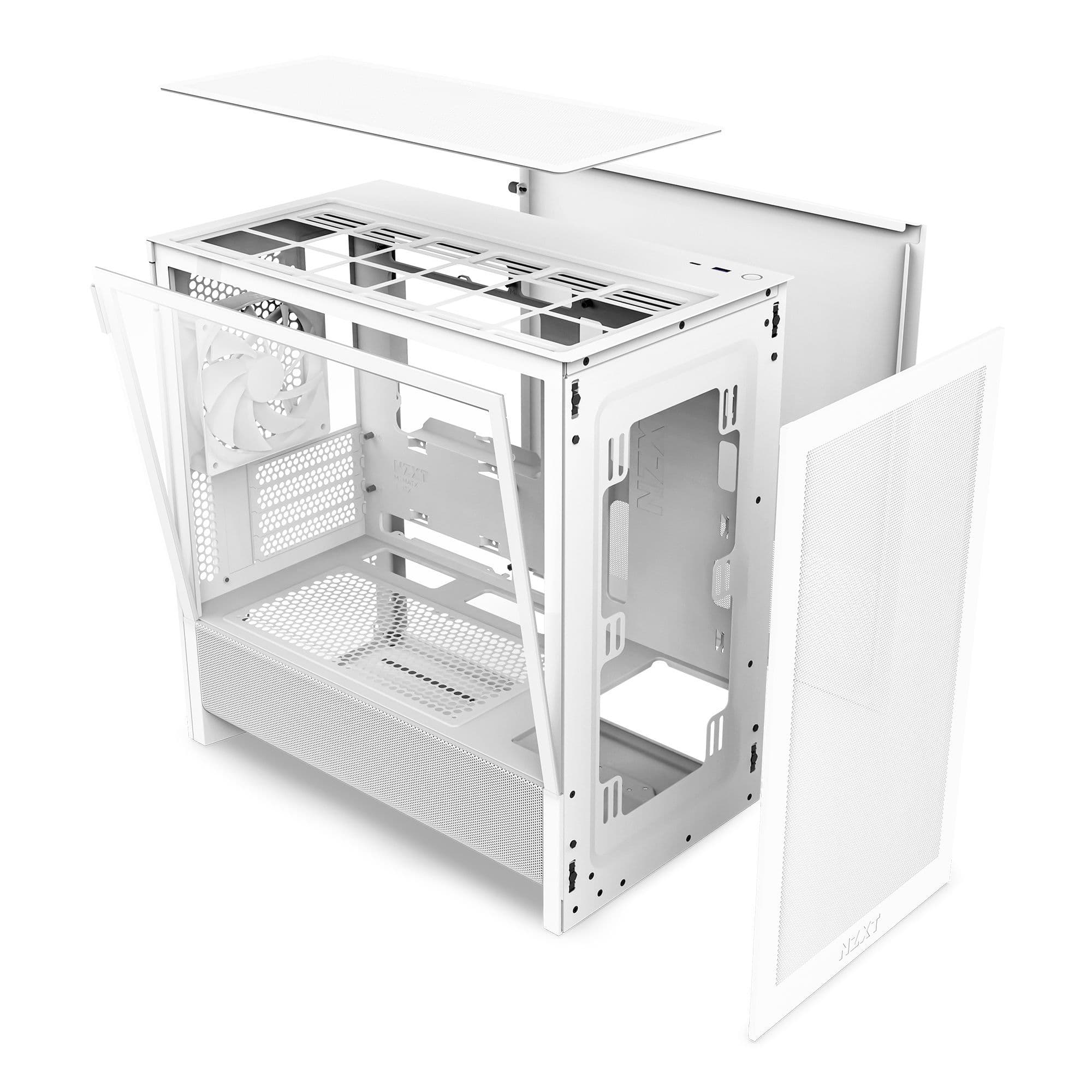

  • Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaningno tools required.

Specifications

Brands NZXT
Model Number CC-H31FW-01
Colour White
Dimensions (LxWxH) 389 x 225 x 400mm
Motherboard Support Mini-ITX, Micro-ATX
Drive Bays 2.5 x 1+2 / 3.5 x 1
Expansion Slots 4
I/O Panel 1 x USB 3.2 Type-A / 1 x USB 3.2 Gen 2x2 Type-C
Radiator Support Top- Up to 240mm, Front - up to 280mm
Front Fan Support 2 x 120mm / 2 x 140mm
Rear Fan Support 1 x 120mm (1 x F120Q Case Version Included)
Top Fan Support 2 x 120mm / 2 x 140mm
Bottom Fan Support 2 x 120mm
Side Fan Support n/a
TYPE Small Form Factor
Weight 6.73kg
