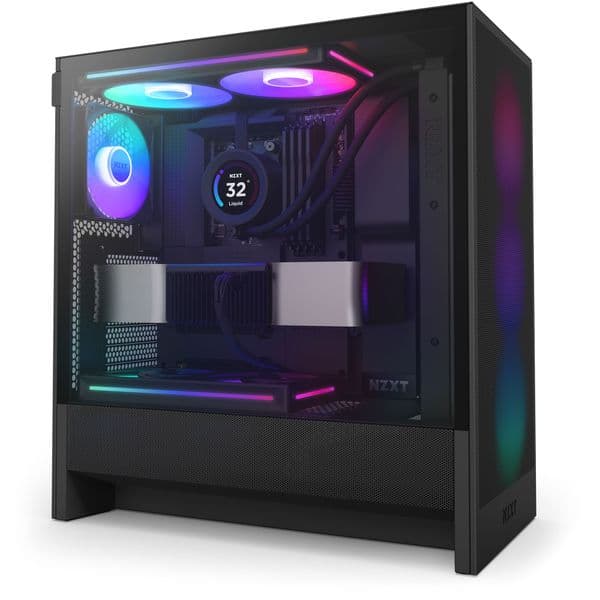

NZXT H5 Flow RGB (2024) Mid Tower Case - Black
NZXT H5 Flow RGB (2024) Mid Tower Case - Black

NZXT H5 Flow RGB (2024) Mid Tower Case - Black

CAS-7003

Description

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator supportall in a compact mid-tower form factor.

  • The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
  • Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.

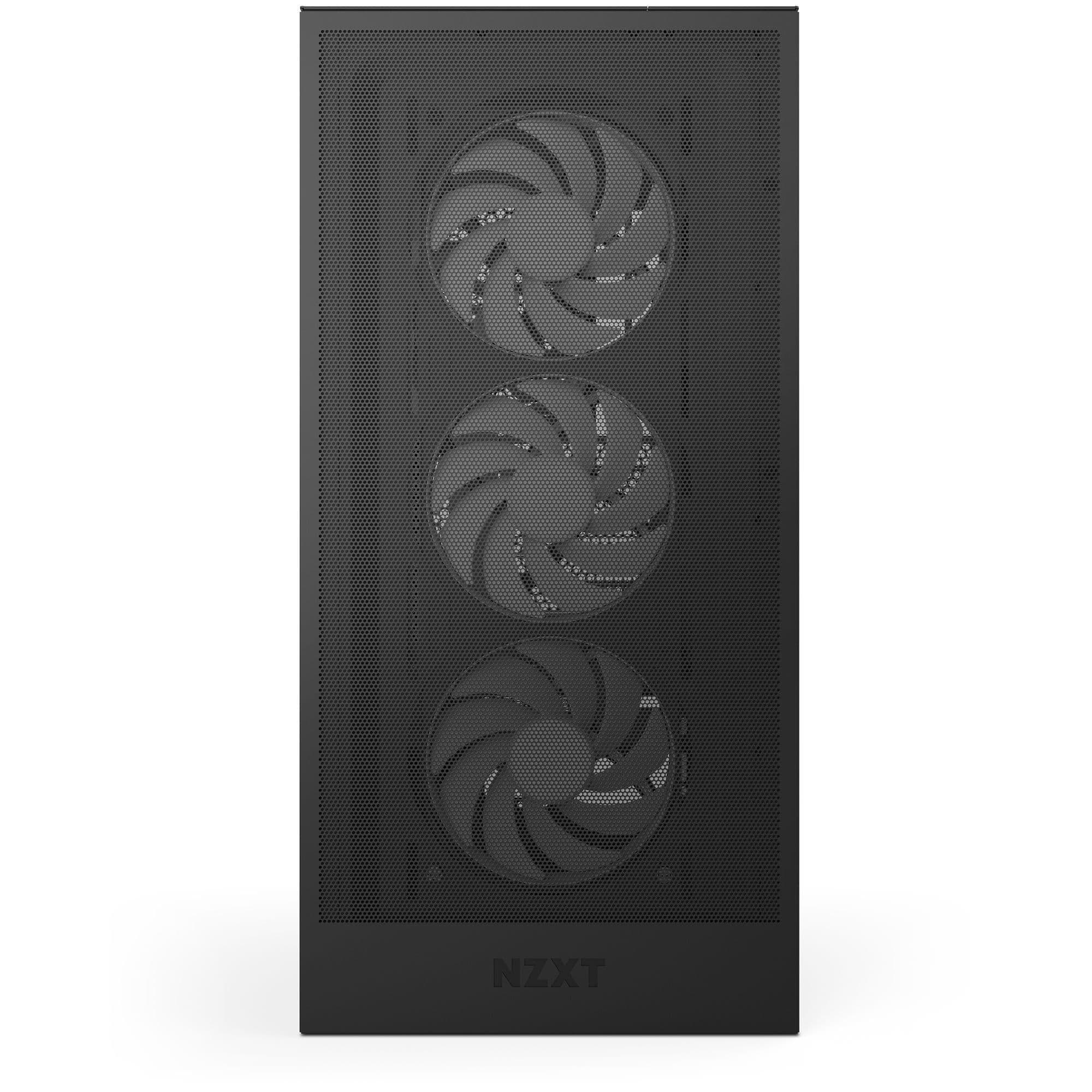

  • Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
  • Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
  • Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Specifications

Brands NZXT
Model Number CC-H52FB-R1
Colour Black
Dimensions (LxWxH) 430 x 225 x 465mm
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX(Up to 277mm wide)
Drive Bays 2.5 x 2 / 3.5 x 1
Expansion Slots 7
I/O Panel 1 x USB 3.2 Type-A / 1 x USB 3.2 Gen 2x2 Type-C / 1 x Headset Audio Jack
Radiator Support Top- Up to 240mm, Front - up to 360mm
Front Fan Support 3 x 120mm / 2 x 140mm ( 1 x F360RGB Core Case Version included)
Rear Fan Support 1 x 120mm (1 x F120Q Case Version Included)
Top Fan Support 2 x 120mm / 2 x 140mm
Bottom Fan Support 2 x 120mm
Side Fan Support n/a
TYPE Mid Tower Desktop
Weight 9.6kg
