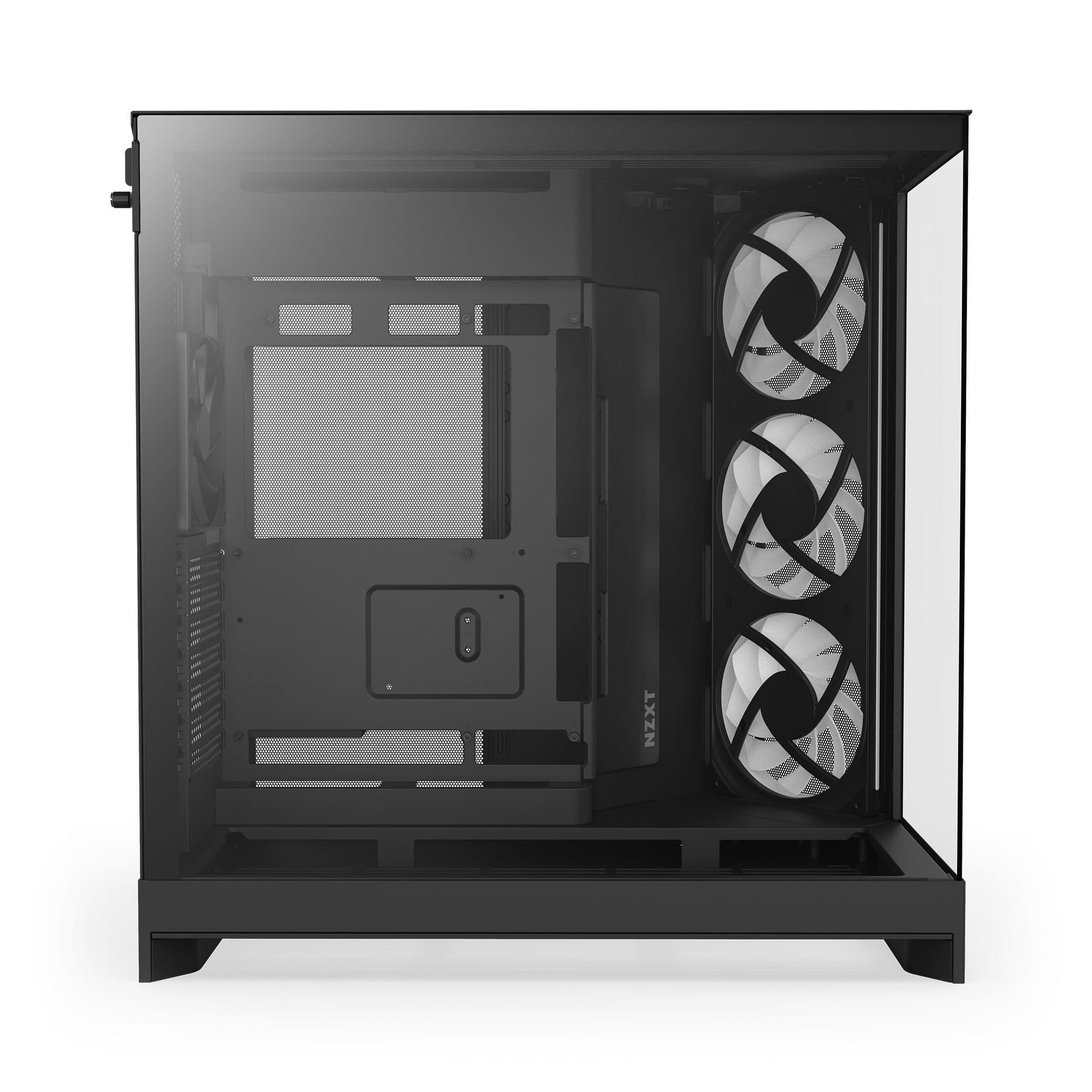

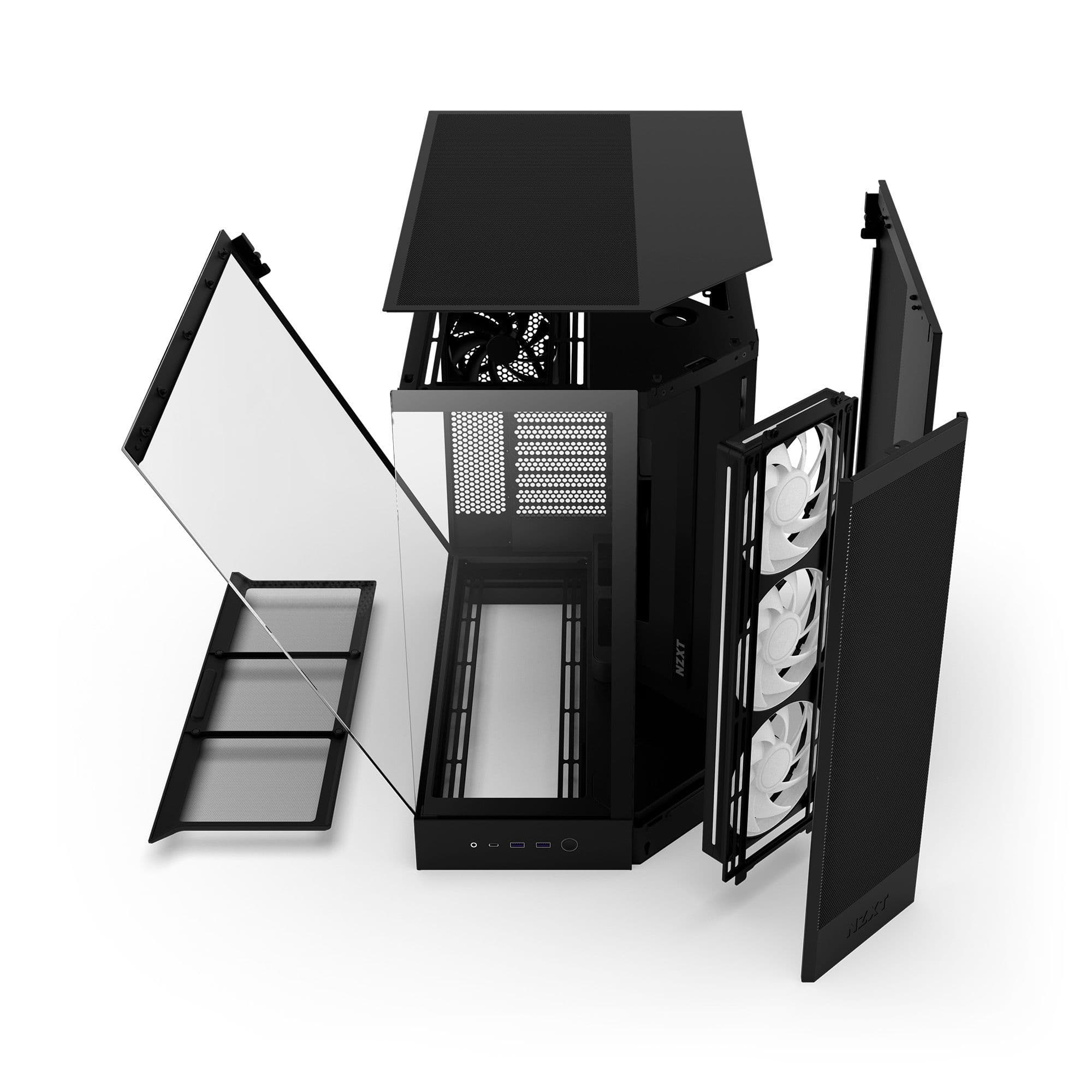

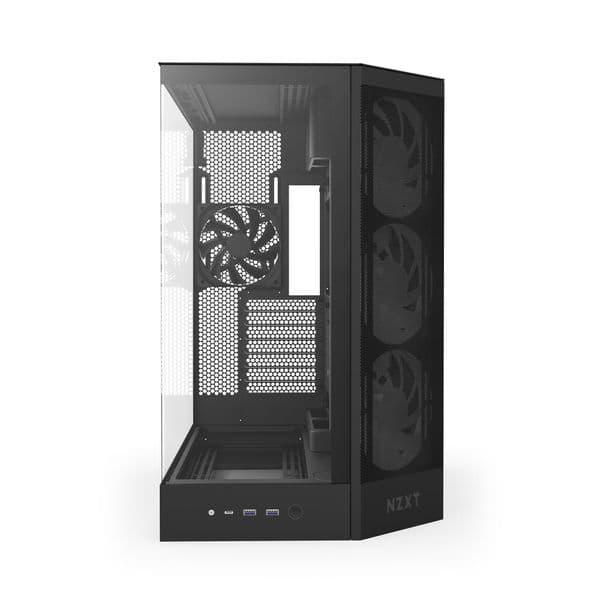

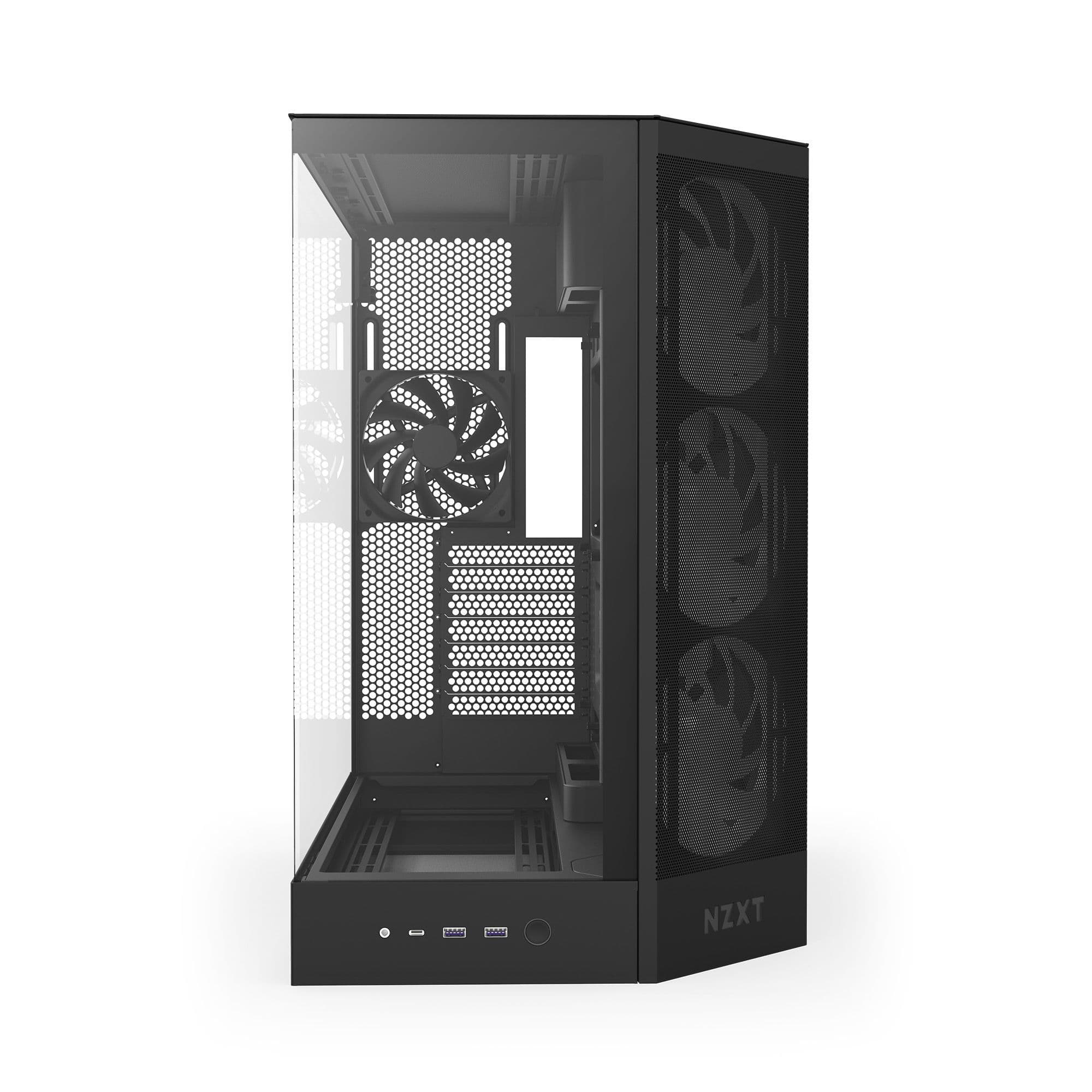

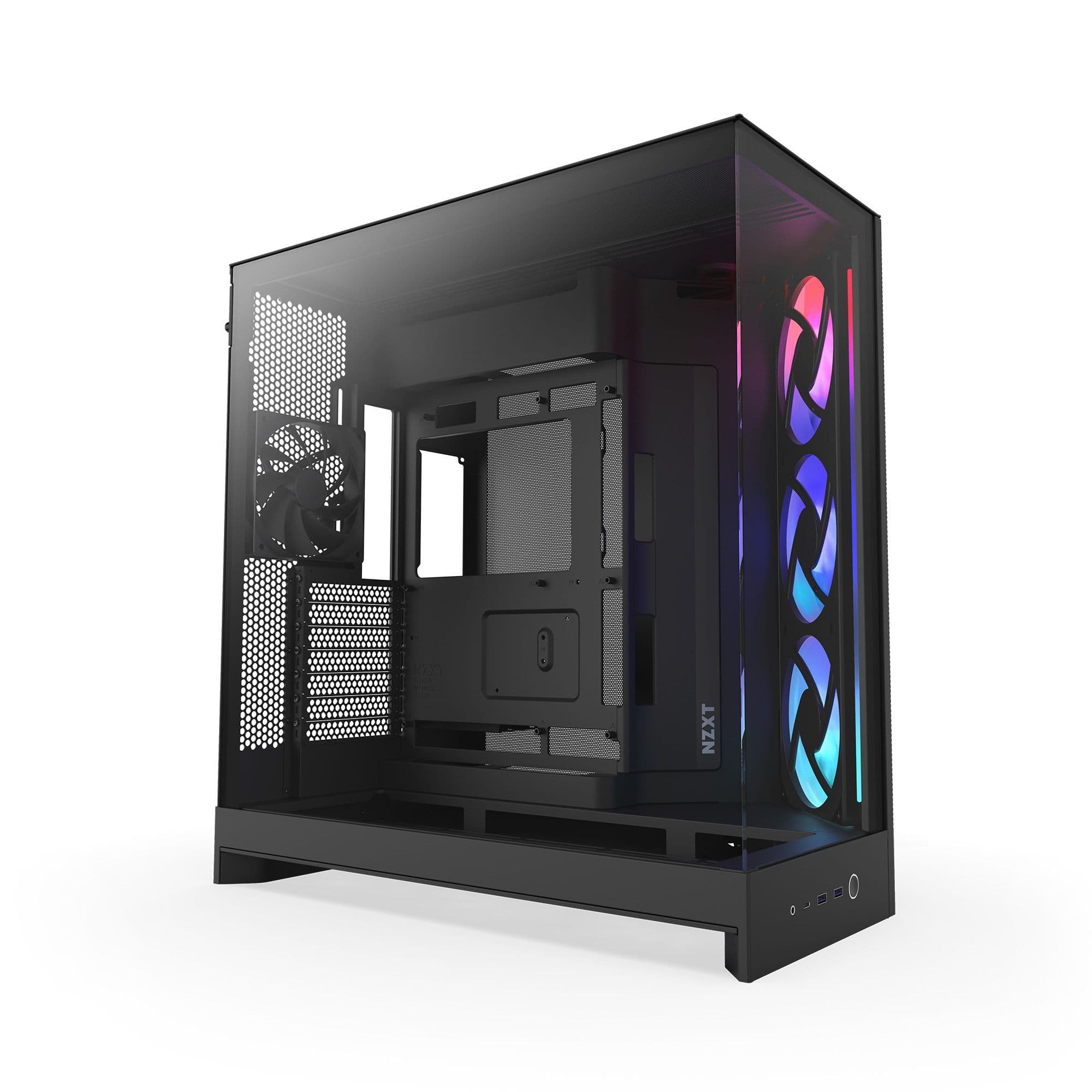

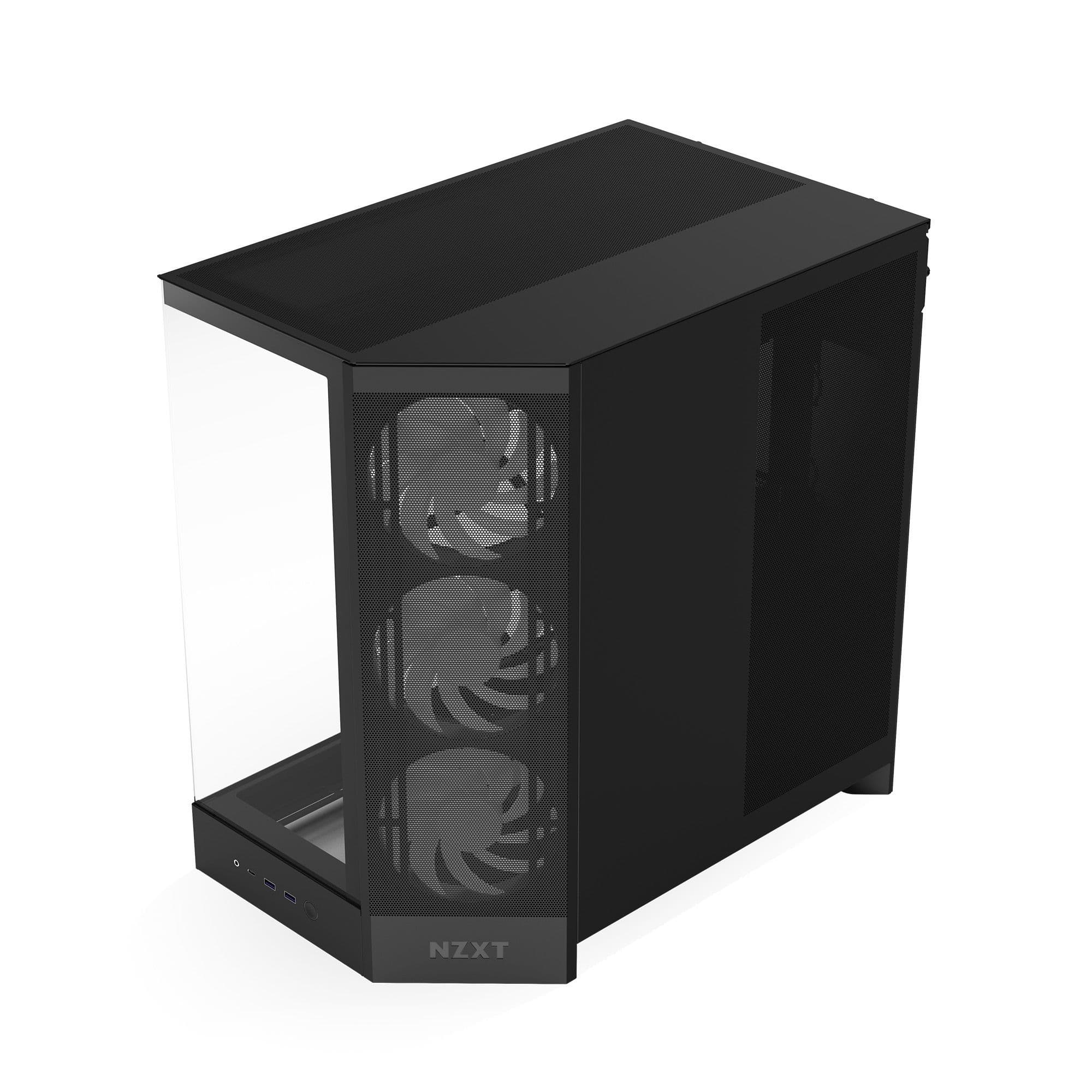

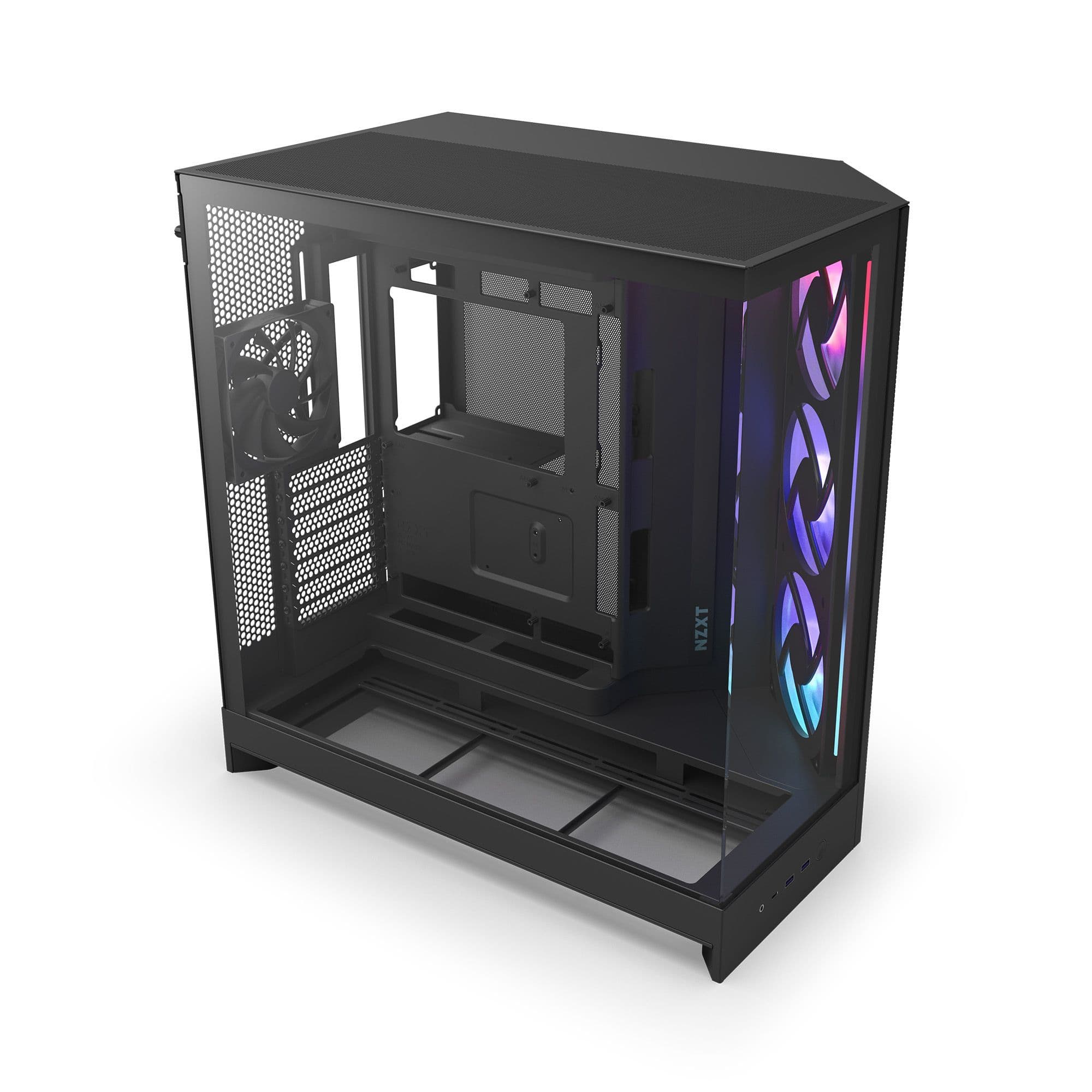

NZXT H9 Air Flow (2025) Large Dual-Chamber Black RGB Mid Tower Case
CAS-7017
£179.99
£149.99 (ex. VAT)
Description
The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- Pre-Installed Fans: Includes one F420 RGB Core single-frame fan unit in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Specifications
Brands
NZXT
Model Number
CM-H92FB-R1
Colour
Black
Dimensions (LxWxH)
481 x 315 x 506mm
Motherboard Support
Mini-ITX, Micro-ATX, ATX, E-ATX
Drive Bays
2.5 x 4+2 / 3.5 x 2
Expansion Slots
7
I/O Panel
2 x USB 3.2 Type-A / 1 x USB 3.2 Gen 2x2 Type-C / 1 x Headset Jack
Radiator Support
Top- Up to 420mm, Front - up to 420mm, Bottom - up to 360mm, Rear - up to 120mm
Front Fan Support
3 x 120mm / 3 x 140mm (1 x F420 RGB Core Inc)
Rear Fan Support
1 x 120mm (1 x F120Q Case Version Included)
Top Fan Support
3 x 120mm / 3 x 140mm
Bottom Fan Support
3 x 120/140mm
Side Fan Support
n/a
TYPE
Mid Tower Desktop
Weight
15.22kg
