Description

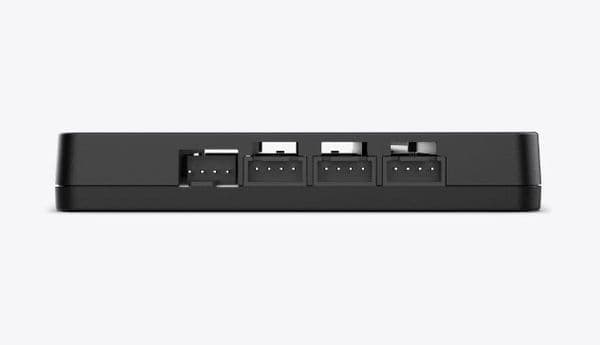

The RGB & Fan Controller combines optimal fan control, RGB lighting customisation, and convenient installation—all in an intuitive and easy-to-use package.
- Control up to nine 3-pin DC or 4-pin PWM fans, allowing Zero RPM mode to optimise noise levels.
- Six NZXT RGB lighting channels, up to 40 individually addressable LEDs per channel, 120 LEDs total.
- The Fan Controller can be installed directly to the PC via SATA and an internal USB header.
Specifications
Model Number
AC-CRFR0-B1
Dimension
132mm x 102mm x 38mm
Output Channels
RGB Lighting Channels : 6 / Fan Channels : 3
Input Connector
Lighting : 5V DC 4.5 A / Fans: 12 V DC 3 A
Connections
USB 2.0 Header: 1 / SATA Power Cable: 1 / Fan Splitter cables : 3
Lighting channels support
Max 40 LED per channel / Max 120 LED combine total for ALL 6 channels
System Requirements
PC with available internal USB 2.0 header, Windows 11/10 operating system, and CAM software
Brand
NZXT
