Silverstone CS383 8 Bay SAS-12G/SATA 6G Hot Swappable NAS Chassis

CAS-NAS-003

Description

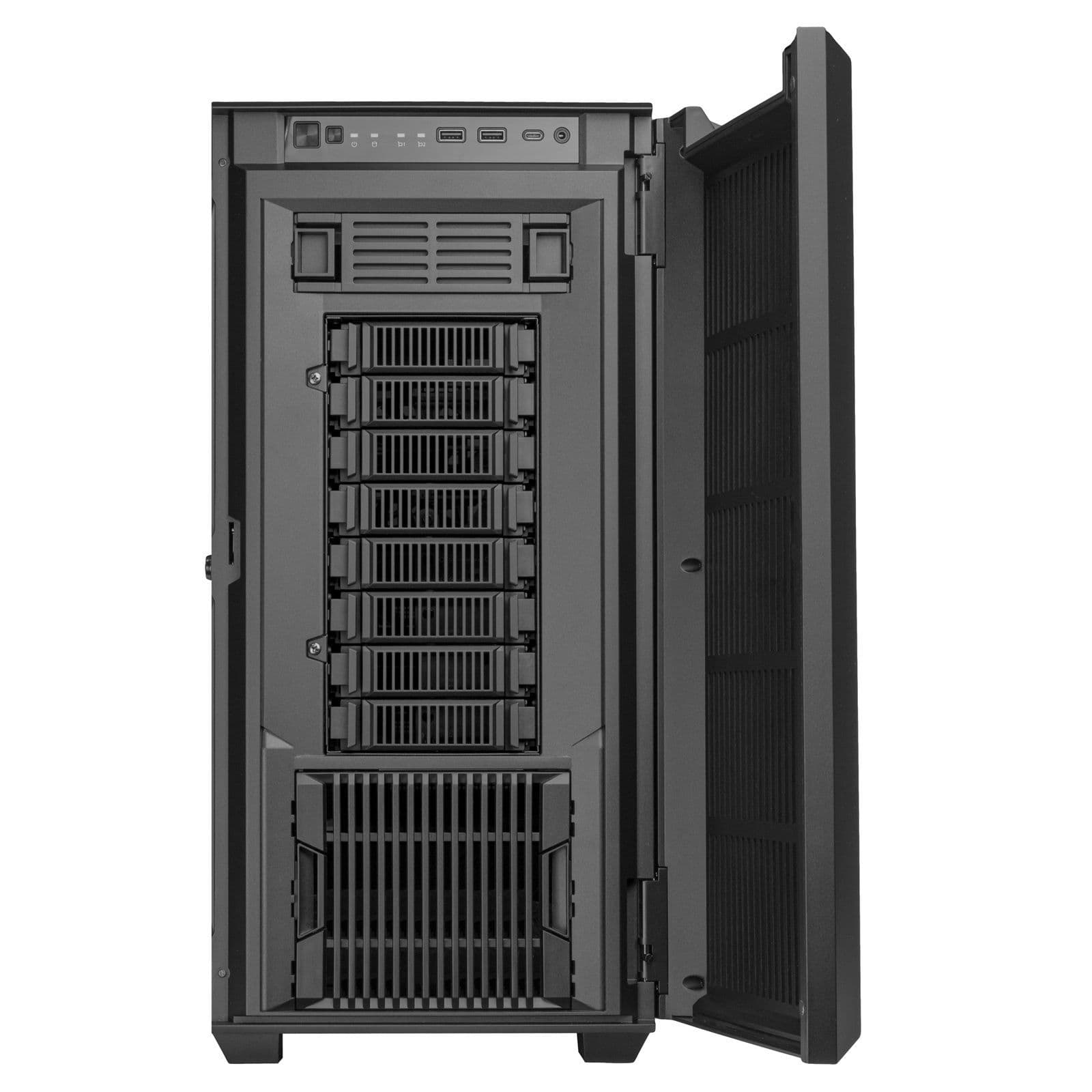

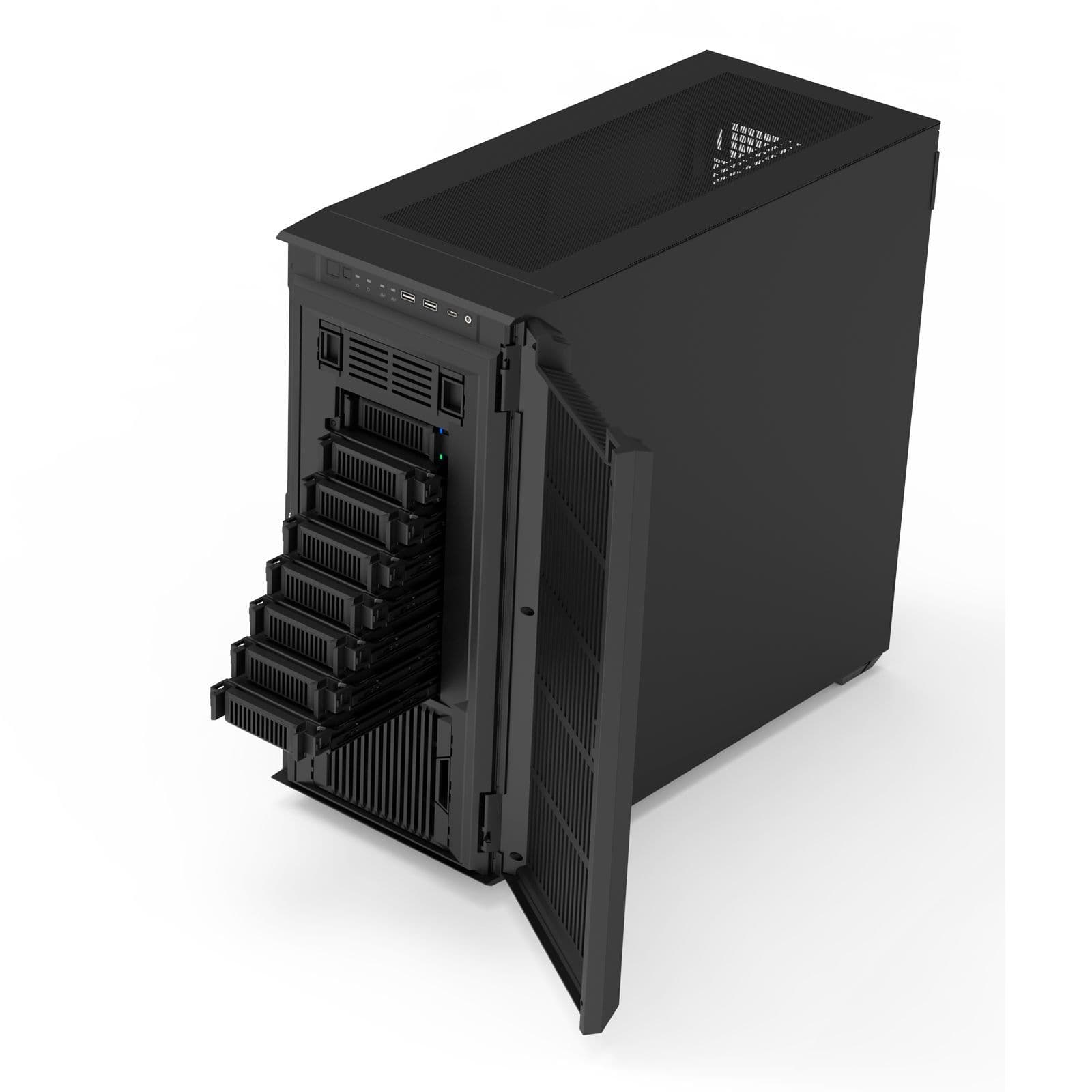

8 hot-swappable drive trays to accommodate up to 8 x 3.5 or 2.5 SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status.
Supports E-ATX / SSI-EEB motherboards.
Compatible with 420mm liquid cooling radiators.
Flexible front expansion slot for 3 x 5.25 devices or secondary PSU slot ^[3].
Support a maximum length of 340mm expansion/interface cards.
Support multiple graphics cards configuration with 8 PCI expansion slots.

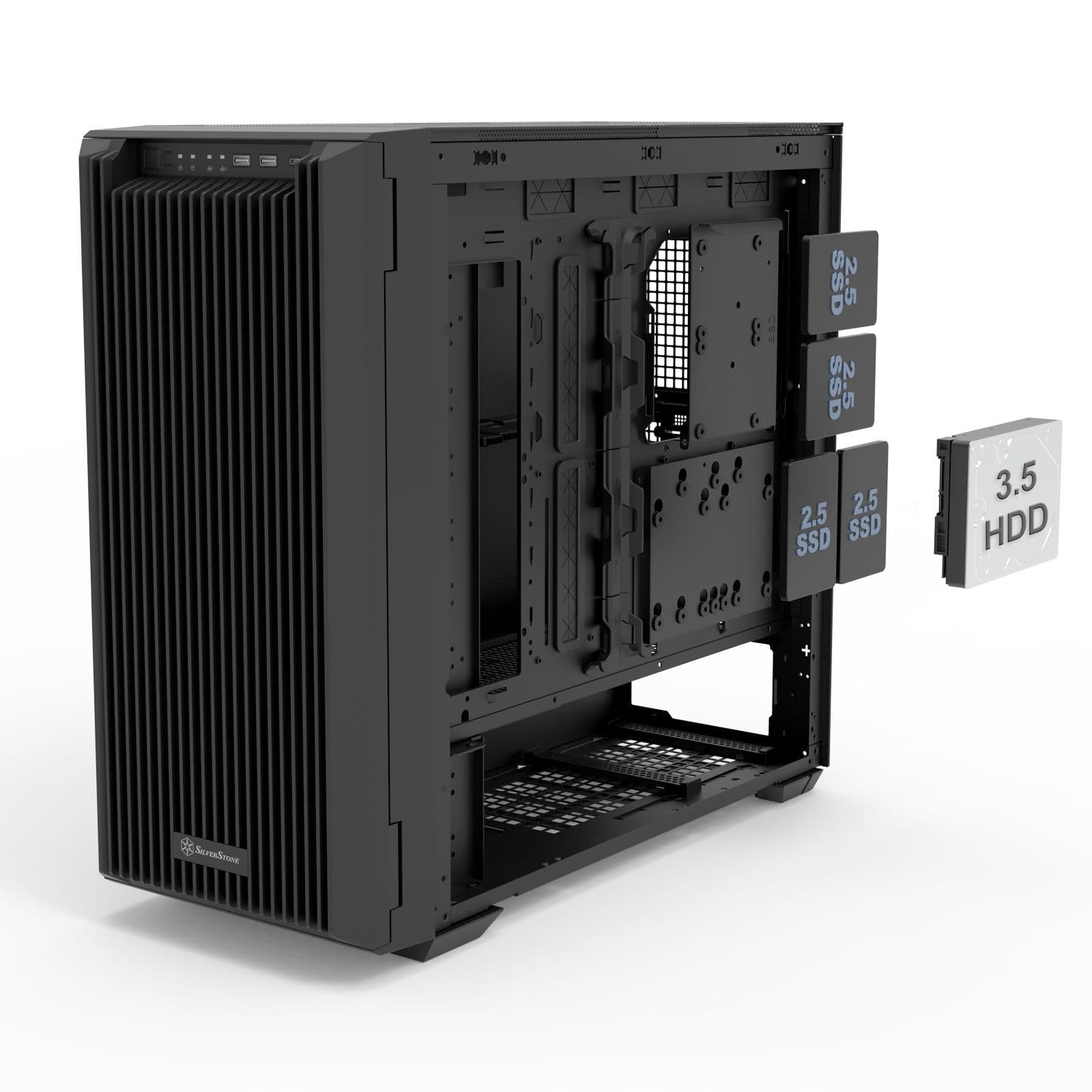

Additional 3.5 x 1 + 2.5 x 2 or 2.5 x 4 device compatibility internally.

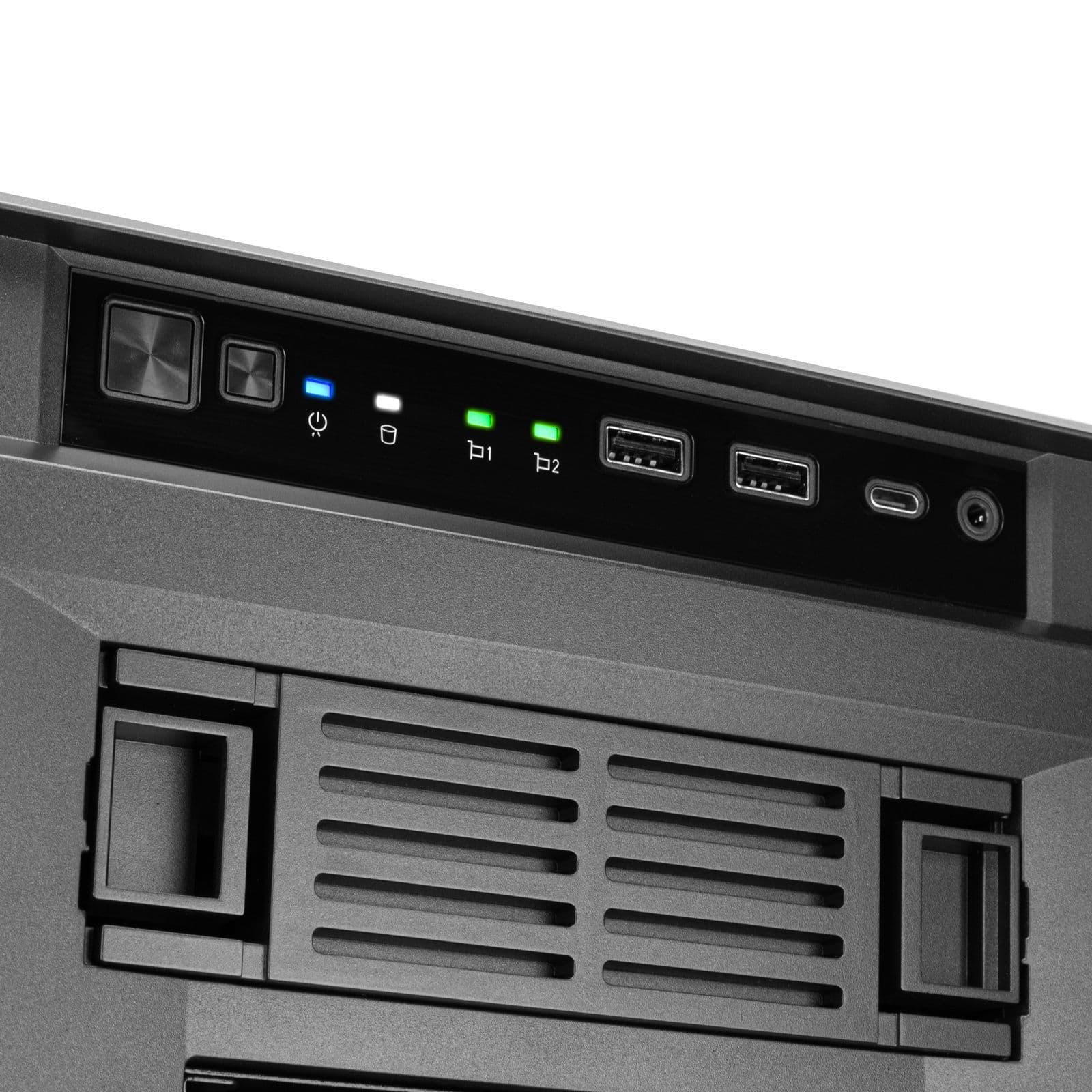

Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio.
Dust filters included in key areas.

Brands Silverstone

Colour Black

Side Fan Support -

Front Fan Support Internal 92mm x 2 (Included)

Rear Fan Support 120mm

Top Fan Support 140mm x 1 (Included)

I/O Panel USB Type-C x 1 / USB 3.0 x 2 / Combo Audio x 1

Motherboard Support SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Expansion Slots 8

Dimensions (LxWxH) 588mm x 248mm x 528mm

Model Number SST-CS383

Power Supply Standard PS2(ATX)

Radiator Support Rear 120/140mm : Top Up to 420mm

EAN 4710679818726

TYPE Server/Storage

Drive Bays Internal 3.5'' x 1 / 2.5'' x 2 or 2.5'' ; External 2.5''/3.5'' SATA/SAS external hot-swap x 8, 5.25 x 1, 5.25 x 3

Weight 19.2kg
